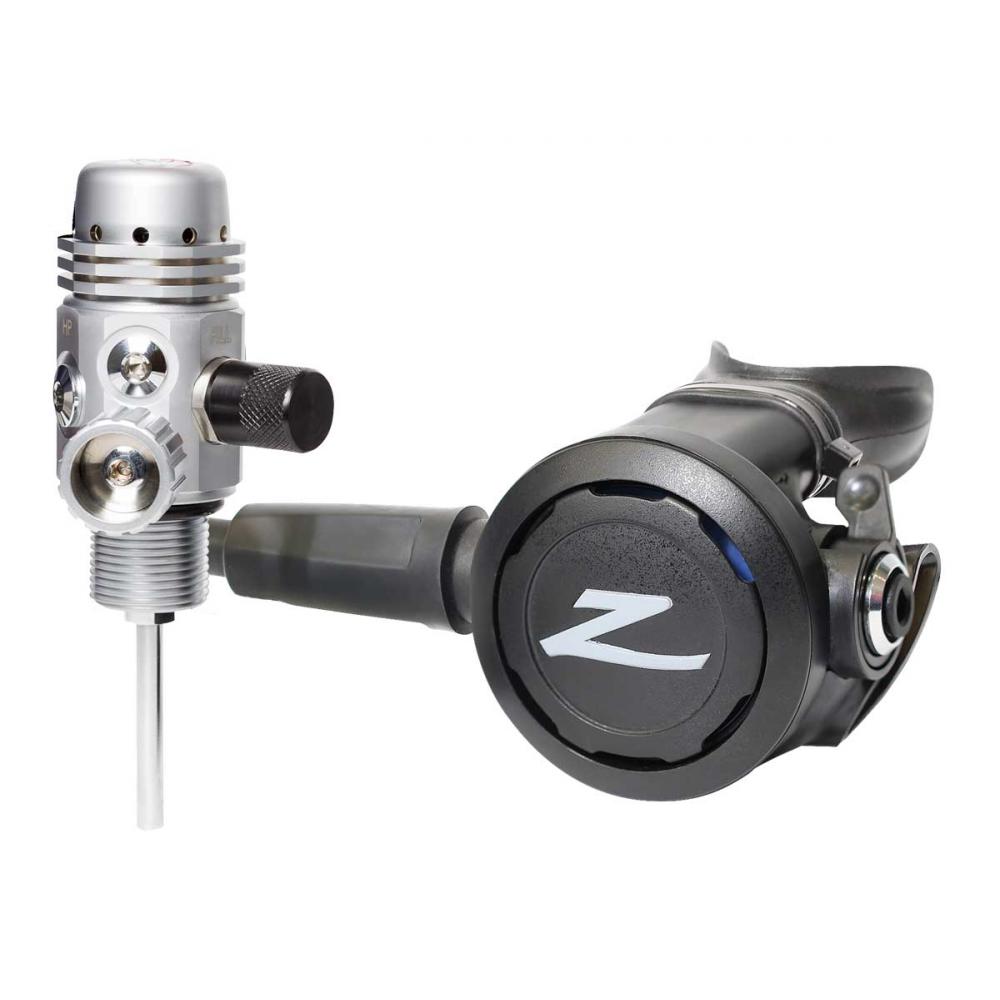

ZEAGLE ENVOY/RAZOR II 2 REGULATOR 1ST AND 2ND
A unique combination of a valve and a 1st stage in a very light package
A combination 1st stage and tank valve perfect for pony bottles. The Envoy RaZor regulator has a Flow-by Piston style 1st stage with design features that allow direct airflow through the 1st stage, providing performance that far exceeds what would be expected in an economical regulator. The 2nd stage is a balanced orifice design.
RaZor FIRST STAGE/VALVE FEATURES:
-
High Performance Porting
-
Flow-by Piston
-
Yoke Style Filling Adapter Included
-
4 Low Pressure Ports (3/8”-24 UNF)
-
1 High Pressure Port (7/16”-20 UNF)
-
Weight 1.62 lb. (.73 kg.)
-
Intermediate Pressure: 125-150 psi (8.6-10 bar)
ENVOY SECOND STAGE FEATURES:
-
Downstream valve
-
Balanced Diaphragm
-
Dive/Pre Dive Venturi Control
-
Weight: .42 lb. (.26 kg) ( w/o hose)
-
Hose Length: 44 in. (1.1 m)
| First Stage Materials: | Second Stage Materials: | ||||
|
Body: |
Brass | Cover: | Flexible Thermoplastic | ||
| O-rings: | Buna-N | Case: | Thermoplastic | ||
| Seat: | Advanced Polymer | Poppet Seat: | Elastomer | ||
| HP Seat: | Teflon | O-rings: | Buna-N | ||
| Valve Seat: | Teflon | Diaphragm: | Elastomeric Polymer | ||
| Exhaust Valve: | Elastomer | ||||
| Mouthpiece: | Silicone |
*cylinder not included
